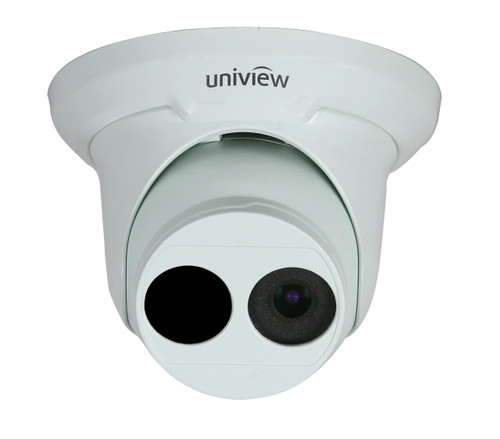

Uniview IPC3612SR3-PF28 2MP Turret Style Network IR 3.6mm Fixed Dome Camera

2MP Turret Style Network IR 3.6mm Fixed Dome Camera

(No reviews yet) Write a Review
$0.00
Brand
SKU:
061-3612-36
Condition:
New

 2MP Turret Style Network IR 3.6mm Fixed Dome Camera

Optics

  • Day/night functionality
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • Up to 30 m (98 ft) IR distance
  • 3D noise reduction



Compression

  • H.264/MJPEG
  • Triple streams
  • 9:16 corridor mode



Specifications

  • Support PoE power supply (optional)
  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range of ±25%
  • 4 KV surge protection designed for network interface
  • IP66
  • ONVIF Conformance



Camera

Sensor 1/3", 2 megapixel, progressive scan, CMOS
Lens 3.6mm@F1.8(3.6mm, 6mm optional); Angle of view(H): 99.1° (76.7° / 46.9°)
Shutter Auto/Manual, 1/6~1/8000 s
Day/Night IR-cut filter with auto switch (ICR)
IR 30m (98 ft) IR range
AWB Auto/Manual
Gain Control  Auto/Manual
WDR  Digital
Noise Reduction  2D/3D
Video
Max. Resolution  1920×1080
Video Compression  H.264/MJPEG
Frame Rate

 1080P (1920×1080): Max. 30 fps; 720P (1280×720): Max. 30 fps; D1 (720×576): Max. 25 fps
Video Streaming  Triple
OSD  Up to 8 OSDs
9:16 Corridor Mode  Supported
Motion Detection  Up to 2 areas
Privacy Mask  Up to 4 areas
Network
Protocols  IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,RTP,RTSP,Qos,DNS,DDNS,NTP,FTP,UPnP,HTTP
Compatible Integration  ONVIF
Interface
Network  10M/100M Base-TX Ethernet
General
Power  12 V DC, or PoE (IEEE802.3 af) Power consumption: 3.5 W (5.5W with IR on)
Weather Protection  IP66
