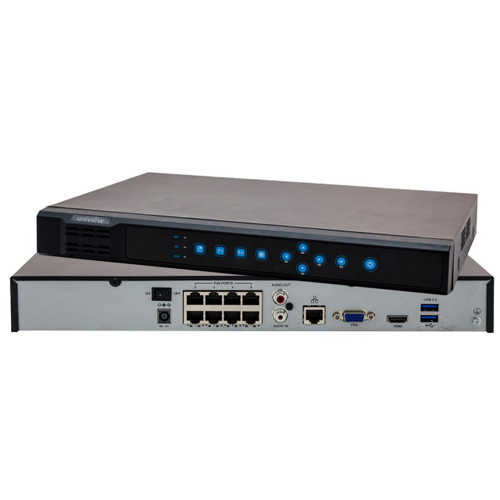

8 Channel 8 POE 2 HDDs up to 12TB 64Mbps Network Video Recorder

(No reviews yet) Write a Review

$0.00

8 Channel NVR with all ports POE. Basically plug and play no need to create a separate network for your CCTV.

Specifications

Network
Incoming Bandwidth:	64Mbps
Outgoing Bandwidth:	96Mbps
Remote Connections:	16
Video/Audio Output
HDMI/VGA output:	HDMI/VGA
Recording Resolution:	8MP@25、6MP@25、4MP@30、3MP@30、1080P@30、720P@30
Audio Input/Output:	1-ch,RCA
Synchronous Playback:	8-ch
Decoding
Live view/ Playback:	8MP@25、6MP@25、4MP@30、3MP@30、1080P@30、720P@30
Capability:	16 x 720P@25, 6 x 1080P@25, 3 x 4MP@25, 2 x 4MP@30, 2 x 6MP@25, 1 x 8MP@25
Hard Disk
SATA:	2 SATA interface
Capacity:	Up to 6TB for each disk
External Interface
Network Interface:	1 RJ-45 10M/100M/1000M adaptive Ethernet Interface
USB Interface:	1 x USB2.0, 1 x USB3.0
POE
Interface:	8 independent 10/100 Mbps Poe Ethernet interfaces
Supported Standard:	IEEE 802.3at
General
Power Supply:	52 VDC, 1.8A
Consumption(without hard disk and POE):	≤8 W (without hard disk)
Working Temperature:	-10°C ~ + 55°C (+14°F ~ +131°F)
Working Humidity:	10% ~ 90%
Dimensions:	360.0 ×254.3.0 × 43.6 mm (14.17” × 10.01” × 1.72”)
Weight(without HDD):	≤1.45KG 3.2lbs.
